R16 Fifth Wheel With Round Tube Slider

R16 Fifth Wheel With Round Tube Slider

List price:
$1,243.43
Price
$899.95 $899.95 $899.95

Enter your zip code to check product availability at U-Haul locations near you.

Description

Product Description

Part Number:
CQT30869

R16 Fifth Wheel With Round Tube Slider (CQT50024) - Warranty: Limited Lifetime - Weight Carrying: 4,000 lbs. (TW/ GTW) - Weight Distributing: 16,000 lbs. (TW/GTW) - Hitch Height: 14-18 inches - Travel: 11 inches front to back

  • The R16 Fifth Wheel with round tube slider provides a superior design with many of the key elements that today's RV'ers have been looking for.
  • • The aesthetically designed cast head provides commercial durability and high strength.
  • • Improved head funneling for king pin to latch
  • • Head and pivot beam can be offset 1” front or rear to maximize performance
  • • A highly visible green king pin indicator that can easily be seen from inside the truck. This indicator ensures that the king pin has been correctly positioned and is safely locked in the fifth wheels dual jaw.
  • • The cast jaw system was designed with a double jaw mechanism that sustains heavier wear while reducing chucking,
  • • The cast pivot beam incorporates a vibration isolator system that is responsible for dampening vertical and longitudinal vibration thus improving your fifth wheels overall ride.
  • • Improved life and wear with added grease points
  • • Full floating head that provides easy connection on uneven ground and better control on the road.
  • • Adjust vertically 14-18 inches
  • • Contoured customized grip handle with easy to follow universal control instructions.
  • • Includes round tube slider that provides additional turning clearance for short bed vehicles and preventing damage to the truck or trailer in tight locations at low speeds.
  • • Compatible with Sidewinder pin box if additional clearance is necessary
  • • SAE J2638 Compliant

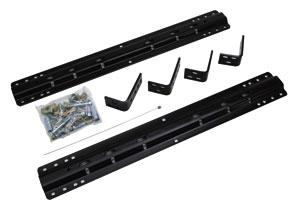

  • • Requires rails & installation kit (sold separately)
  • Please note: will not fit trucks with beds shorter than 6' unless used with a Sidewinder. Will not fit trucks with flareside/stepside.

Reviews (0)

Questions & Answers (2)

Questions & Answers (2)

To view an answer to a question, simply click on the question. To post a new question, click on the "Ask a question" button below.

Ask a Question

*All questions are reviewed and approved before being posted or answered.
Please keep all questions appropriate and related to the product.

The R16 fifth wheel hitch would fit a 2023 HD high country

–William 9/30/2024 8:25:18 PM

Hi William! This is universal. However, it will not fit trucks with beds shorter than 6' unless used with a Sidewinder nor trucks with flareside/stepside. If you need any further information, you can contact your local U-Haul Center and speak with a hitch specialist. I hope that helps.

–Kristy 10/9/2024 6:02:44 PM

Will this 5th Wheel work on a 2500 Dodge Ram

–Leonard Laws 4/2/2024 3:09:53 PM

Hi Leonard. This is universal. However, it will not fit trucks with beds shorter than 6' unless used with a Sidewinder nor trucks with flareside/stepside.

–Kristy 4/4/2024 4:57:34 PM
