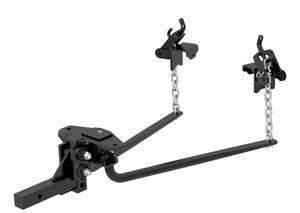

Curt Round Bar Weight Distribution 1000 lbs.

2 reviews

List price:
$249.95 $249.95 $249.95

Order by 1pm for delivery today. Orders after 1pm will be delivered tomorrow

Your Address

Product Description

Part Number:

Round bar weight distribution hitch 1,000 TW 10,000 GTW

  • Round forged steel spring bars
  • Heavy duty adjustable formed head
  • Evens load improving control
  • Built-in sway control attachment tabs
  • 12” shank fits 2” x 2” inch receiver tube openings
  • Includes 2" x 2" adjustable shank, spring bars, adjustable head, hook-up brackets,spring bar chain and U-bolt, pin & clip.
  • Does not include trailer hitch ball.
  • For more information, see the .pdf information file located above.

Curt Round Bar Weight Distribution 1000 lbs. Reviews (2)

4 out of 5 stars with 2 reviews

Gary F.

Arrived quickly. Easy to install. Great instructions from Curt. This hitch is amazing. We have a 17ft Palomino Ultralight trailer on a 2012 Volvo XC60. My ride height was affected badly by the tongue weight of the trailer. With this new hitch installed, my ride height has been restored and the trailer sits almost perfectly level. Best investment for trailer hauling.

Anonymous customer

Nice solid unit

Questions & Answers (6)

To view an answer to a question, simply click on the question. To post a new question, click on the "Ask a question" button below.

Ask a Question

*All questions are reviewed and approved before being posted or answered.
Please keep all questions appropriate and related to the product

Does Curt make a WD set up with a #17124 adj shank or can one be substituted for the one that comes with the set up before ordering?

–Lee S 5/5/2016 10:42:35 AM

Weight distribution kits can be built to fit your needs, please contact your local U-Haul hitch center for pricing and availability.

–Joseph 5/10/2016 8:36:26 AM

was chating w/ caroline got disconnected, wanted max adjustment height for CM 17000 w/d hitch

–bill miller 8/31/2015 7:48:26 AM

Hey Bill, see below for the shank details of the CMF17002:

Height 7-1/2"

Rise 5-1/2"

Drop 7-1/2"

Length 12"

–Joseph 9/1/2015 9:16:18 AM

can I pull any car ?

–hector 11/3/2014 10:41:56 PM

"The CMF17002 is a weight distribution system designed for towing trailers weighing up to 10,000 lbs. Pulling or towing a vehicle would require either an auto transport trailer, a two wheel tow dolly, or a tow bar system. Please visit your local U-Haul center for more information on a towing system that will work best for you."

–Ronald 11/10/2014 8:11:58 AM

What is proper adjustment fiction sway bars

–James 6/20/2014 1:49:51 PM

"A friction sway control is pre-set at the factory with a tension suitable for most light trailers. To get maximum benefits from a friction sway control, a series of tests should be taken with the loaded trailer. During the first road test, try the sway control at the factory preset tension. On subsequent trips, increase or decrease tension by turning the adjustment bolt in 1/4 turn increments until the desired control is achieved. When towing during slippery conditions such as wet, icy or snow covered roads or on loose gravel, turn the on/off handle counterclockwise until all tension is removed from the unit. Failure to do so could prevent tow vehicle and trailer from turning properly."

–Ronald 6/24/2014 7:40:28 AM

Can this be put on a 1998 camero

–nick 4/14/2014 5:03:51 AM

Our hitch pro writes: "The Camaro hitches are class one 1-1/4" receivers and will not accept weight distribution hitches."

–Ronald 4/14/2014 2:00:32 PM

Does uhaul install weight distrubution bars

–Jeff 4/7/2014 12:41:58 AM

Our hitch pro writes: U-Haul sells and installs complete towing packages including weight distribution hitches. For complete pricing, please contact your local U-Haul center.

–Ronald 4/7/2014 3:41:08 PM
