U-Box Container Trailer Dimensions
Last Updated:
U-Box containers can be placed on a specially engineered trailer, designed to hold one or two containers at a time. These trailers can facilitate delivery to your door or be delivered by local Moving Help Service Providers.
A single U-Box container trailer can be parked in any legal parking space. This includes street parking and apartment/condo complex parking.U-Box trailers are designed to be loaded on top of the trailer. Each trailer comes with individual loading ramps located on the rear and side of the trailer so you can easily tranpost your beloninging in and out of your U-Box containers.
Learn how to properly and safely connect and disconnect your trailer by watching this short video, or follow the U-Box Trialer User Instructions.
Dimensions and weights are of the U-Box trailer without a container. The container will add 90” in height and 500 lbs. (per container) when empty, and up to 2500 lbs. (per container) when full.

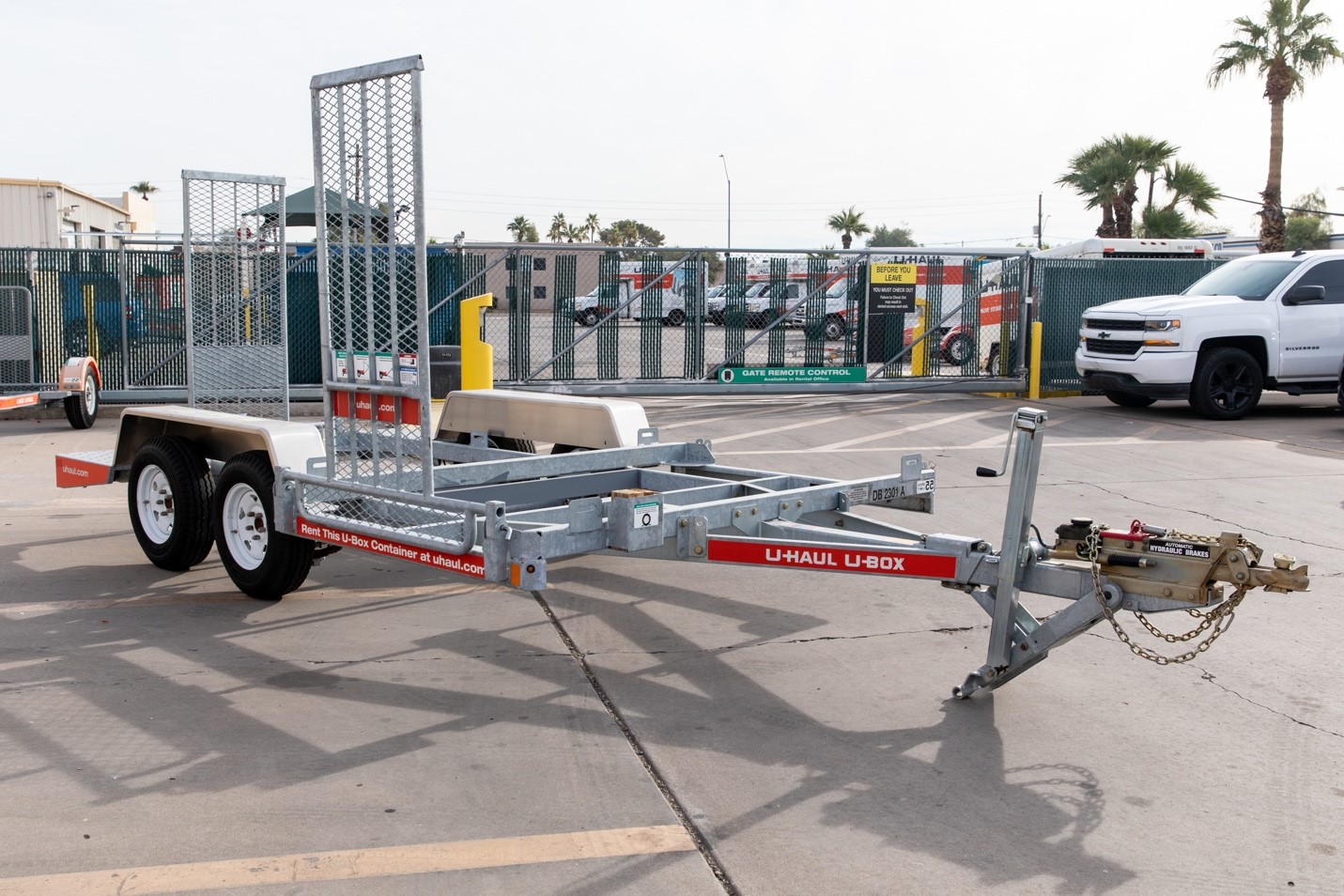

Single U-Box Container Trailer
- Exterior Length: 170 inches
- Exterior Width: 91 inches
- Level Ball Height: 18.5 inches
- Empty Weight: 710 lbs
- Empty Tongue Weight: 117.5 lbs.
- Hitch Ball Sizes: 1-7/8 to 2 inches hitch ball
Double U-Box Container Trailer
- Exterior Length: 227 inches
- Exterior Width: 98.5 inches
- Level Ball Height: 18.5 inches
- Empty Weight: 1,725 lbs
- Empty Tongue Weight: 307 lbs.
- Hitch Ball Sizes: 1-7/8 to 2 inches hitch ball
